Terminal:
Pilot dispatch:
Pilot boarding area:
Mileage pilot - port/berth:

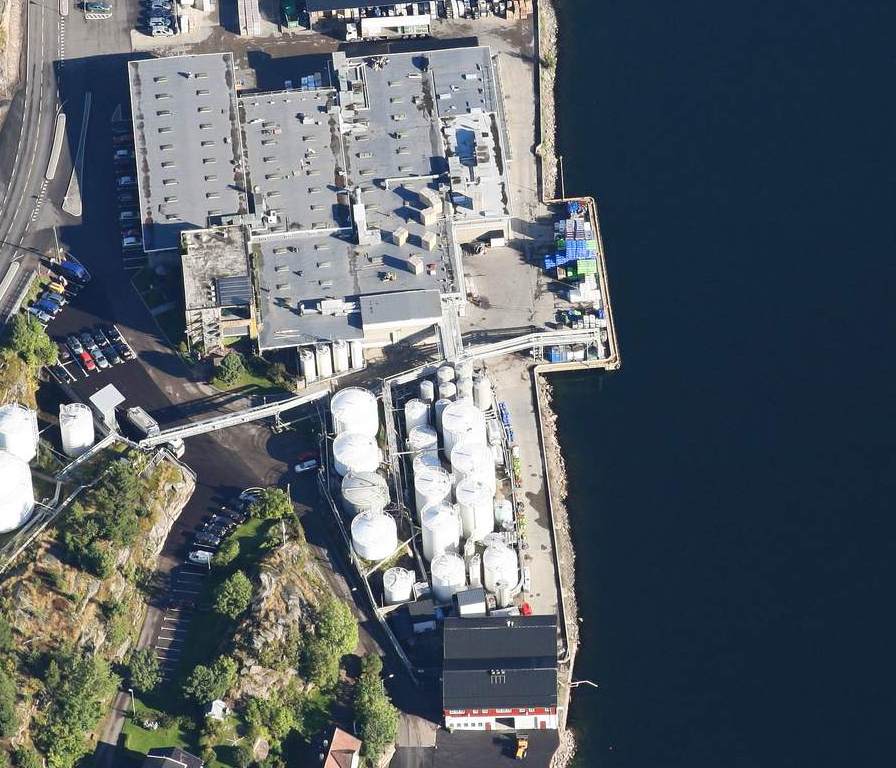

Wilhelmsen Chemicals AS
Horten (Hvasser)
VHF Ch 13 / 16
Phone: +47 33 03 49 70
Faerder: 59° 04,5´ N / 010° 34,5´ E
abt. 16 nm
Name of berth:
Position:
Owner of berth:
Wilhelmsen Chemicals AS, Kjøpmannskjær
59° 10,3´ N / 010° 23,2´ E
Wilhelmsen Chemicals AS
Restrictions:
Draft: (dens:1,018)
LOA:
Beam:
Air Draft:
DWT:
Products:
Cargo hose size:
Tidal fluctuation:
Condition of ground:
Jetty:
5,1 m
No restriction
No restriction
Abt. 4.500
Exxsol, Varsol, IPA, Ethanol
4" hose / 6" flanges
abt. 30 cm (1 foot)
Rock
Restrictions during night time in approach:
5,0 m
100 m
16 m
max 4 hoses used for discharge
Discharges:
Segregated ballast water:
Slop/ballast to shore:
Pre-washing slop to shore:
Yes
Yes, to truck only. Quantity needs to be advised in advance.
Yes, to truck only. Quantity needs to be advised in advance. (Ex Varsol 60)
Tugboats are not compulsory but can be ordered from Brevik or Oslofjord area.
Max 8 Bar back pressure allowed when discharging
Vapour return line not available
Normal working hours:
07:30 hrs to 16:00 hrs. Vessels are normally handled all days at 24 hrs basis.
Fresh water is available. Vessel own hose has to be used. Limited capacity.
Transit cargoes are allowed. Also low flash cargoes.
