Terminal:
Pilot dispatch:
Pilot boarding area:
Mileage pilot - port/berth:

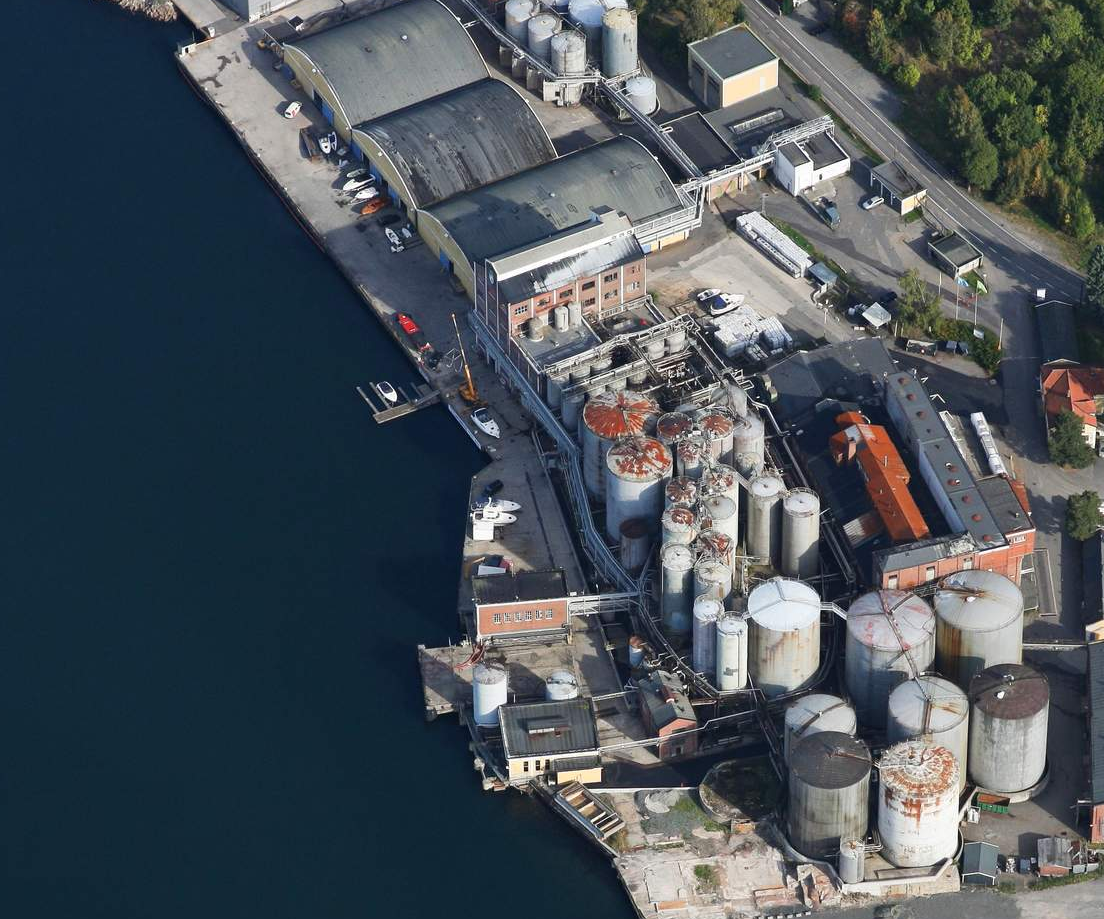

Jahrestranda Næringspark AS
(ex Oleon Scandinavia)
Horten (Langesund)
VHF Ch 13 / 16
Phone: +47 33 03 49 54
Langoeytangen:
58° 56,4´ N / 009° 47,6´ E
abt. 28 nm
Name of berth:
Position:
Owner of berth:
Jahrestranda Næringspark,
Oljepiren / Langkaia
59° 06,4´ N / 010° 14,1´ E
Jahrestranda Næringspark AS
Restrictions:
Draft: (dens:1,018)
LOA:
Beam:
Air Draft:
DWT:
Products:
Cargo hose size:
Tidal fluctuation:
Condition of ground:
Oljepiren
8,0 m
120 m
No restriction
No restriction
CPP
10" hose
abt. 30 cm (1 foot)
Mud / Clay
Langkaia:
5,5 m
140 m
No restriction
No restriction
IPA
4" hose
abt. 30 cm (1 foot)
Mud / Clay / Rock
Tugboats are not compulsory but can be ordered from Brevik or Oslofjord area.
Max 6 Bar back pressure allowed when discharging
Vapor return line not available
Normal working hours:
07:00 hrs to 15:00 hrs.
Handling of vessels outside working hours will be advised if possible by terminal.
Fresh water is available. Vessel own hose has to be used. Very limited capacity.
Transit cargoes are allowed. Also low flash cargoes.
